8. Attaching the Front Mudguard and ReflectorUpdated 25 days ago

This requires the four long screws, four bolts, the brake wire holder, the smallest spanner and the allen key.

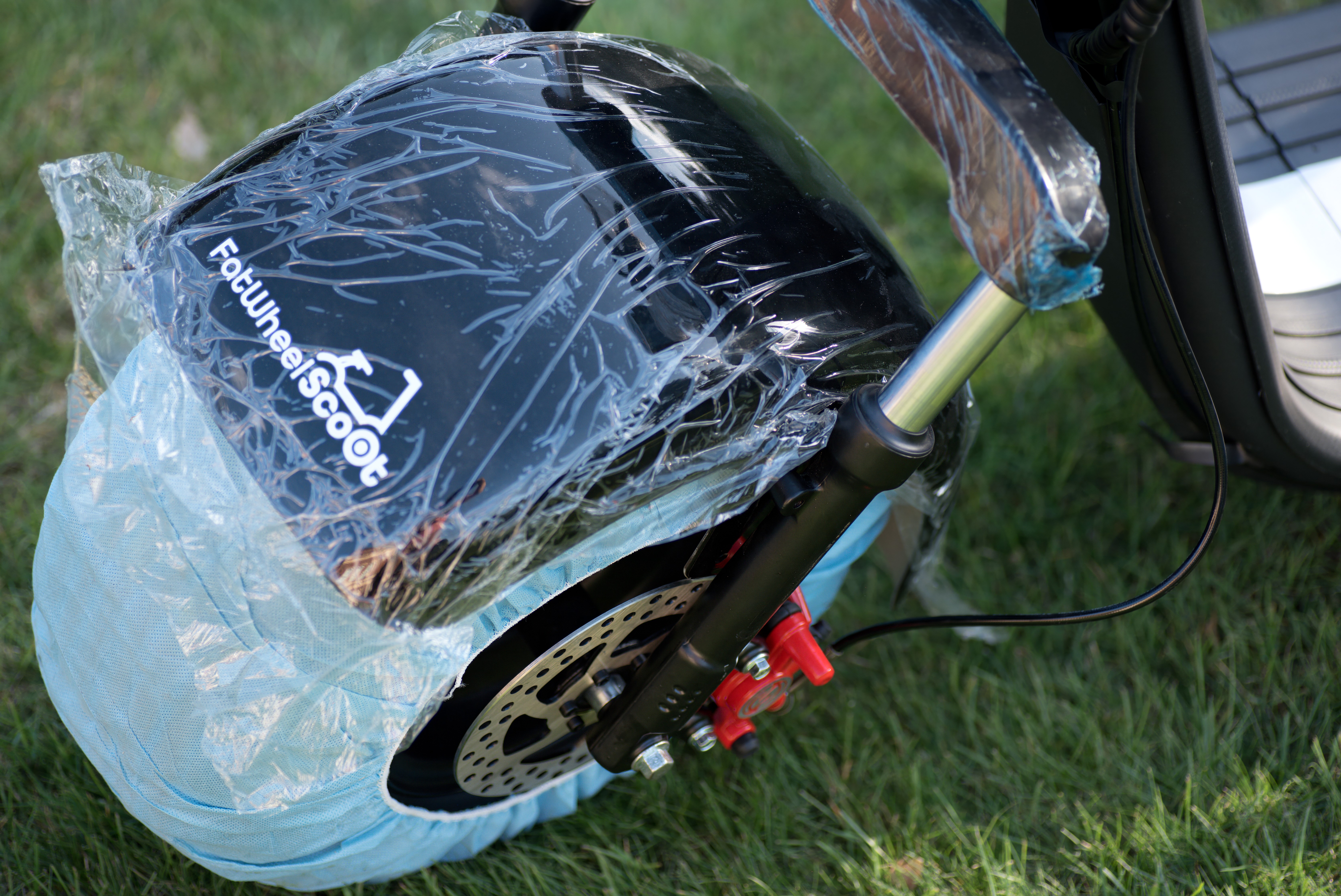

Place the mudguard over the top of the wheel, with the shorter part towards the front of the scooter.

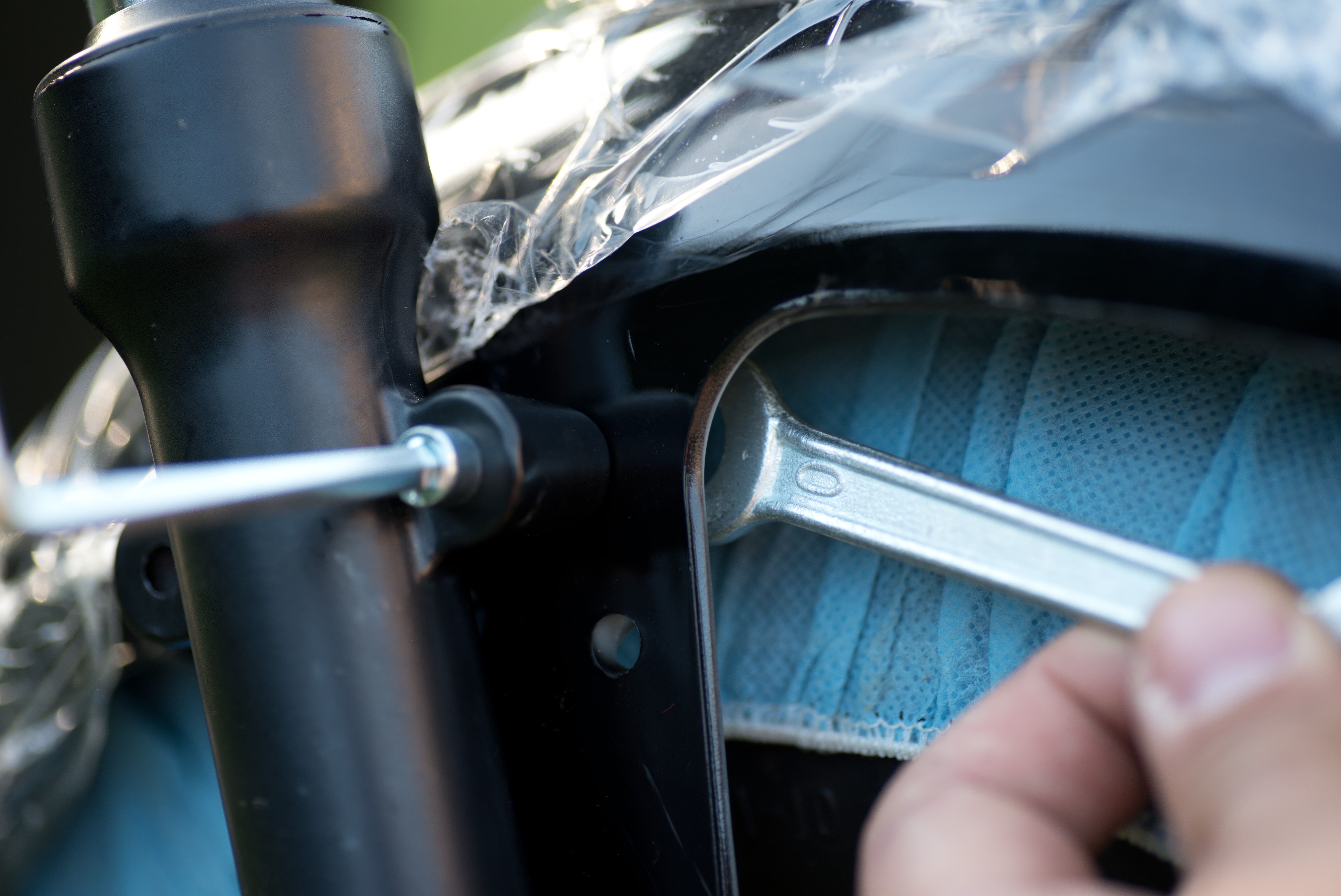

On the hole closest towards the back of the scooter on the left hand side (from the perspective of sitting on the scooter), put the screw through the hole in the front fork, then through the brake wire holder, then through the hole in the mudguard and then attach the bolt at the back. The other three screws are the same but without the brake wire holder.

Put the brake wire in position so it is held by the brake wire holder and make sure the wheel can move freely without scraping the mudguard.

The rear reflector requires the small spanner as well as a nut. Place the rear reflector in position, aligned to the two holes, then tighten the nut.
